Multi-EFA

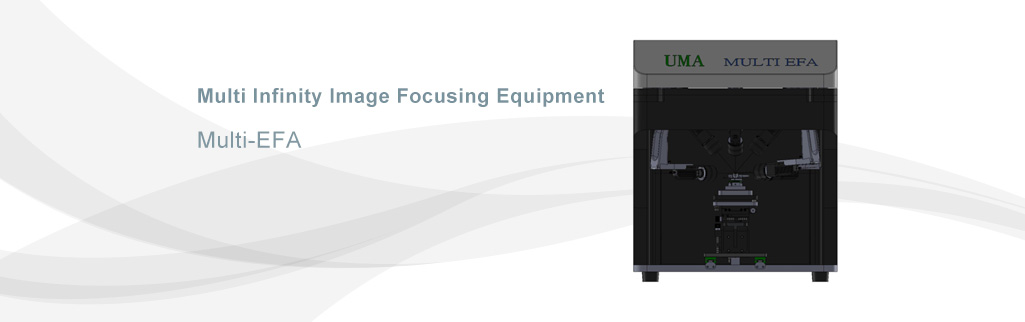

Multi Infinity Image Focusing Equipment
Multi-EFA system can be adjusted to meet different testing requirements of camera modules. This system contents several test charts at adjustable FOV to procced Finite/Infinite conjugate measurement of camera module via different combination of calibrated collimator Lens. With UMA’s SFR test software, MTF distribution information can be easily acquired.
Multi Infinity Image Focusing Equipment
Multi-EFA system can be adjusted to meet different testing requirements of camera modules. This system contents several test charts at adjustable FOV to procced Finite/Infinite conjugate measurement of camera module via different combination of calibrated collimator Lens. With UMA’s SFR test software, MTF distribution information can be easily acquired.
2
Please refer to the Specification.
3
| Item | Description | Remark |
| Collimator Lens | 5 sets / 9 sets / 13 sets | optional |
| Collimator Lens EFL | 35mm / 50mm / 75mm | optional |
| Chart | Star Pattern | exchangeable |
| XYZ Stage (manual) | Camera Module Base | |
| Y axis-Slide | for Camera Module load & unload | |
| Maximum FOV (Diagonal) | 180° | |
| Standard Light Source | LED (White Light 5500K) Brightness > 10 lux |
|
| Machine Dimensions | 68 cm * 60 cm *55 cm | |
| Machine Weight | 35KG | |
| Power Supply | AC110V |
