MD-60FC

1

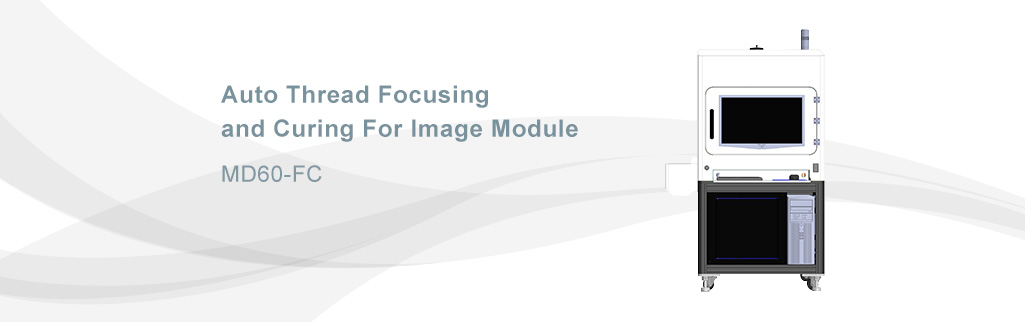

MD-60FC
Auto Thread Focusing and Curing For Image Module


MD-60FC is automatic focusing, gluing and UV curing equipment for lens module. The maximum FOV can reach 1400, and use tray loading/unloading method to save operation time. It can apply to the camera module of cellphone, car and surveillance system.


• Digitalized Image Quality Adjustment:An optimized image quality can be obtained by quantify and correctly adjustment through MTF calculation.

• Multiple Test Points and Flexible Focusing Method:Provide finite and infinite conjugate and wide field of view focusing.

• Use Tray as a loading/ unloading unit: Multiple lenses can be placed at once to effectively reduce operating time.

• Intergrade the front and back-end process to shrink working hours:In the machine, glue dispensing and UV curing can be preceded after focusing.

2

Please refer to the Specification.

3

Item Description Remark
Maximum Size of Focusing Module 28mm(L)*32mm(W)*32mm(H)*16mm(Ф)
Rotating Resolution of Focusing 0.09 ˚
Rotating Resolution of Focusing 20 ˚ ~ 140 ˚
Optical system 40cm to Infinite Conjugate
Collimator Test Regions : 5 or 9 or 13 sets
EFL : 35mm or 50mm or 75mm
Optional
Light Source: Brightness:Min. 300lux(Manually Adjustable)
Color Temperature:5500 ˚+/- 300K
Life Time:6000hrs

Tray Size 280L*280W(10*8)
Aperture of Gripping Module Ф8~ Ф16 customized
Probe jig Designed with Condition Accordingly
Focusing Head Ф8~ Ф16
customized
Glue dispenser 雙點點膠
UV light source 365nm UV-LED
Machine Size 1560L*900W*1700H
Weight 230  Kg
Power source AC220±10% 60Hz  10A
Operation System Windows 7
Compressor CDA:0.5 MPa (5 kg / cm2)
