MD-60AA HX

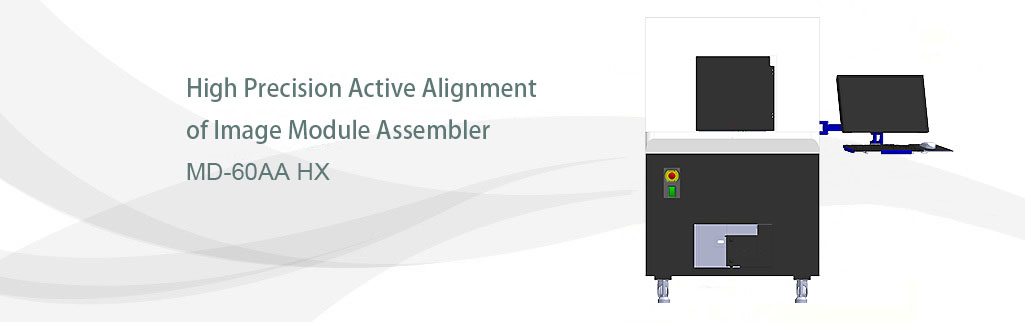

High Precision Active Alignment of Image Module Assembler
MD-60AA provides full function of automatically and multi-axis of high precision active focusing, tilt calibration, centering and glue dispensing and curing for the camera module alignment. The image quality can be optimized based on MTF calculation and multi-axis accurate adjustment.
APPLICATION
This system can be widely applied to tiny image module assembling, such as endoscope camera.
FEATURES
✔ Full-function and digitalized Lens image quality adjustment can reach optimized image quality via 6 degree
freedom alignment.
✔ Three charts sets are designed for different object distances AA or test requirements.
✔ High speed image tilt alignment. Able to proceed promptly and accurately image plane correction by αβ axis adjustment and through focus curve calculation.
Series Type
► MD-60AA
► MD-60AA Pro
► MD-60AA HX
► MD-60AA Pro T
► MD-60AA Compact
High Precision Active Alignment of Image Module Assembler
MD-60AA provides full function of automatically and multi-axis of high precision active focusing, tilt calibration, centering and glue dispensing and curing for the camera module alignment. The image quality can be optimized based on MTF calculation and multi-axis accurate adjustment.
APPLICATION
This system can be widely applied to tiny image module assembling, such as endoscope camera.
FEATURES
✔ Full-function and digitalized Lens image quality adjustment can reach optimized image quality via 6 degree
freedom alignment.
✔ Three charts sets are designed for different object distances AA or test requirements.
✔ High speed image tilt alignment. Able to proceed promptly and accurately image plane correction by αβ axis adjustment and through focus curve calculation.
Series Type
► MD-60AA
► MD-60AA Pro
► MD-60AA HX
► MD-60AA Pro T
► MD-60AA Compact
2
FUNCTIONS
| Optical System | Customized finite distance optical system |
| Active Alignment | 6-Axis adjustment for acquiring optimized image quality. |
| UV Pre-cure | Up to 4 LED heads to proceed UV Pre-cure |
| Through Focus and SFR Curves | Measuring Before and after Active Alignment |
| MTF Measurement at On/Off-axis | MTF test will be both proceeded before and after pre-curing. |
3
SPECIFICATIONS
| Machine Dimensions | 900W*1000D*1500H mm |
| Machine Weight | 300 Kg |
| Power Supply | AC220V/10A |
| Communication Interface | I/O Card |
| Operation System | Windows7 |
| Optical System | Finite reticle system 3 charts available (Minimum 5mm objective distance) |
| Lens & Module Dimensions (Customized) |
• Lens Ø：3 ~ 25 mm H：2 ~ 20 mm • Module H：5 ~ 30 mm |
| Axis SPEC αβθXYZ Stroke/resolution |
• X Axis：30mm / 1um • Y Axis：30mm / 1um • Z Axis：20mm / 0.5um • α Axis：± 5 ˚ / 0.0045 ˚ • β Axis：± 5 ˚ / 0.0035 ˚ • θ Axis：± 5 ˚ / 0.0042 ˚ |
| FOV Range | Customize based on object distance |
