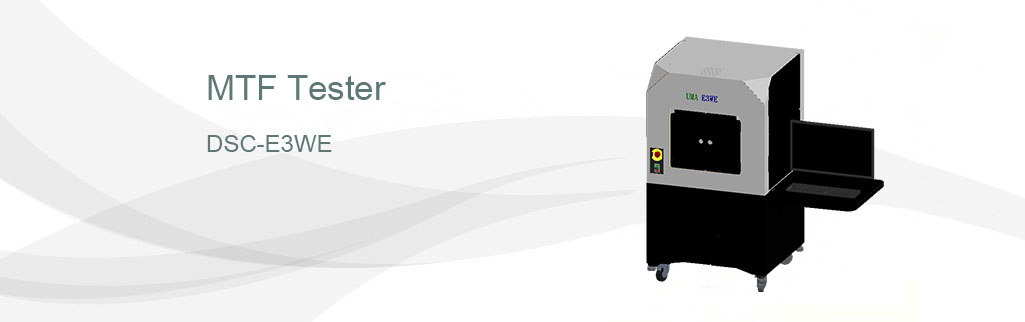

DSC-E3WE
Lens MTF Tester
DSC-E3WE Series is a kind of system designed for applying MTF test to lens inspection.
High speed, high precision, reproducibility good, reasonable price, etc., and is compatible with the industry standard.
APPLICATION
Mobile phones, NB, security, AR, VR, TOF, fingerprint, endoscope, and other types of lens.
FEATURES
✔ A single system can support amazingly large FOV 6˚ ~190˚ measurement.
✔ UMA Patent：DSC-E3WE supports various kinds of reticle patterns, such as Cross Line, on Distortion compensation and MTF measurement without additional reticle and optical information.
As a result, the calibration process and reticle cost can be significantly deducted.
✔ With an advanced optical system, DSC-E3WE supports measurement at infinity and finite object distance. Furthermore, the shortest object distance can reach 20cm.
✔ Replacing brackets is not needed when switches lens types between regular and Wide-Angle lenses.
✔ For a user to be able to choose the most suitable focus-scanning mode freely, both free run and trigger run are available.
Optional Upgrade
✔ Optional upgrade of Micro Distance Measurement Subsystem is available, which is suitable for fingerprint recognition, medical and certain cellphone applications.
✔ Upgrading the system for 5x Zoom Lens test is available.
Lens MTF Tester
DSC-E3WE Series is a kind of system designed for applying MTF test to lens inspection.
High speed, high precision, reproducibility good, reasonable price, etc., and is compatible with the industry standard.
APPLICATION
Mobile phones, NB, security, AR, VR, TOF, fingerprint, endoscope, and other types of lens.
FEATURES
✔ A single system can support amazingly large FOV 6˚ ~190˚ measurement.
✔ UMA Patent：DSC-E3WE supports various kinds of reticle patterns, such as Cross Line, on Distortion compensation and MTF measurement without additional reticle and optical information.
As a result, the calibration process and reticle cost can be significantly deducted.
✔ With an advanced optical system, DSC-E3WE supports measurement at infinity and finite object distance. Furthermore, the shortest object distance can reach 20cm.
✔ Replacing brackets is not needed when switches lens types between regular and Wide-Angle lenses.
✔ For a user to be able to choose the most suitable focus-scanning mode freely, both free run and trigger run are available.
Optional Upgrade
✔ Optional upgrade of Micro Distance Measurement Subsystem is available, which is suitable for fingerprint recognition, medical and certain cellphone applications.
✔ Upgrading the system for 5x Zoom Lens test is available.
2
FUNCTIONS
| MTF | 5 ~25 Image Regions |
| DOF | Depth of Focus |
| FBL | Flange Back Focal Length |
| EFL | |
| Through Focus | |
| Focus Tilt | Curvature Height |
| S.F.R. | Spatial Frequency Response |
| Tilt Angle | Optical Axis Tilt & Azimuth |
| Image plane Correction | Simulated Active Alignment |
| Limit Resolution | TV Line=2*LR*Sensor Size |
| C.R.A. | Chief Ray Angle |
| Encircle Energy | |
| FOV | (UMA Patent) |
| Optical Distortion |
3
SPECIFICATIONS
| Machine Dimensions | R350 :142cm *76cm *150cm R480 :161cm *100cm *165cm |
| Machine Weight | R350 : 350 Kg R480 : 380 Kg |
| Power Supply | AC220V/10A |
| IPC Operation system | Microsoft Windows 10 |
| Reticle Pattern – 3 types (Optional) |
A：Edge (ISO 12233) + Grid B：Cross Line + Grid C：Cross Line |
| MTF Repeatability (10pcs sample、tray in/out 5 times、excluding load & unload) |
Delta MTF ： (<= 200lp/mm) On axis <= 1.0 、 Off axis <= 1.5 |
| Average test times/pc H/W Trigger Mode (without tray load and unload) |
1.5s /pc (M6 Lens、through focus range +/-0.04) |
| Maximum Measuring Frequency | 500lp/mm |
| Limited FBL | > -3.0mm |
| Reticle Size Limited | Max.12mm*12mm ( >12mm customized) Min.1.6mm*1.6mm |
| Macro Object Distance | (optional) |
| Finite Conjugate | Collimator(or Telescope)Lens EFL: 35mm、50mm Min. Object Distance 20cm Note. Collimator lenses need to be changed when object distances and FOV are different. |
| LED Light Source | Visible：Photopic NIR：850nm or 940nm (Optical) |
