DP-60AA

1

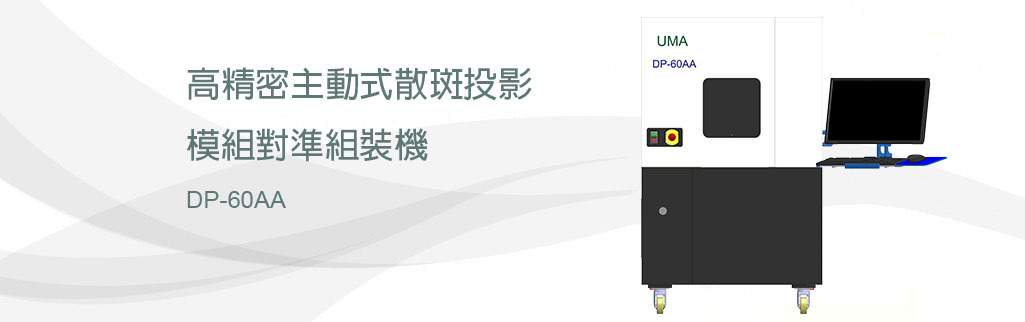

DP-60AA
高精密主動式散斑投影模組對準組裝機
High Precision Active Alignment of Dot Pattern Projector Module Assembler

DESCRIPTION
DP-60AA series針對雷射元件提供高精密度之全功能多軸主動式調焦與校正。
根據影像辨識與計算的結果,透過多軸式的精密調校,可達到最佳投影品質。

2

Item Contents
Optical System Finite object distance optical system
Beam Properties Measure the size and Roundness of the EL beams(Optional)
Spot Properties Measure the size and Roundness of the dots
Uniformity Inspect the uniformity of whole area or ROIs
Active Alignment 6 axis adjustment to optimized image quality
UV Pre-cure 4 LED heads to proceed UV Pre-cure
Automatic Glue Dispensing Support circle, squire and pointing dispensing

3

Models DP-60AA Series
Optical System Finite object distance system
Collimators 5 Cameras
30/40/50../70cm object distance selectable
XYZαβθ Axis SPEC
Stroke/resolution
(θ Axis is option)
X Axis 30mm / 1um
Y Axis 30mm / 1um
Z Axis 40mm / 0.4um
α Axis ± 6 ˚ / 0.003 ˚
β Axis ± 6 ˚ / 0.003 ˚
θ Axis ± 6 ˚ / 0.003 ˚
FOV Range Bracket A. : 20˚ ~ 110˚ (Typical)
Bracket B. : 60˚ ~ 155˚
Bracket C. : 85˚ ~ 179˚
Lens & Module Dimensions Limitation Lens: Lens ψ:3 ~ 25 mm
    H:2 ~ 20 mm
Whole Module: 40 mm(L) X 40 mm (W) X 40 mm(H)
Aspect Ratio Type A (4:3) 、 Type B (16:9)、Customized
Collimator Lens EFL 25mm/35mm/50mm/100mm
UV light Source Central Wave length 365nm
Machine Dimensions 950W*1050D*1600H mm
Machine Weight 350 Kg
Power Supply AC220V/10A
Communication Interface I/O Card
Operation System Windows7
