MD-60AA

1

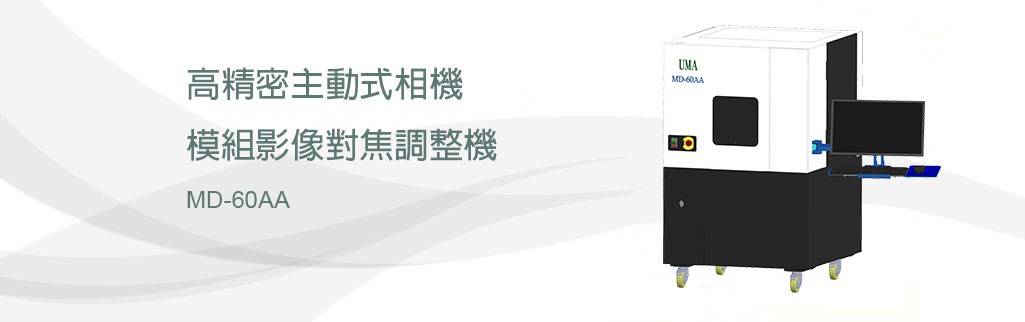

高精密主動式相機模組影像對焦調整機
High Precision Active Alignment of Image Module Assembler


產品特點 Features
全功能數位化的影像品質調整,透過5的調校,呈現出鏡頭與影像感測器的最佳搭配效果。
Full-function and digitalized Lens image quality alignment. Optimize image quality by 5 degree freedom adjustment.
●FOV(Field of View)最大值可接近 215°,可滿足各式相機模組的需求如運動相機、網路相機、環景相機與車用相機等。
Max. FOV(Field of View)~ 215 °. Able to meet the requirements of camera module such as cell phone, IP Cam, sports cam, panoramic camera and wide angle lens for cars.
●高速像平面傾斜及對心調校,進行αβ軸傾斜補正及XY軸對心,快速而確實。
High speed image tilt alignment. Able to proceed promptly and accurately image plane correction by αβ axis adjustment and through focus curve calculation.
●快速切換治具與料盤設計,可滿足少量多樣需求;也可配合客戶產線客製規劃。
Quick model change designed tray and jig can fulfill high variety with low quantity production requirements. The system also can be designed and planed by following client’s production line.

2

Through Focus 與 SFR曲線 主動式調教前與調校後均量測並顯示
軸心與離軸MTF量測 在預固化前與之後均會進行 MTF測試

3

Item Contents
Optical System Infinite conjugate system
Lens & Module Dimensions
(Customized)
Lens ψ:3 ~ 25 mm
    H:2 ~ 20 mm
Module H:5 ~ 30 mm
Platform Space 100mm(W)*130mm(L)
XYZαβ Axis SPEC
Stroke/resolution
X Axis 20mm / 1um
Y Axis 50mm / 1um
Z Axis 40mm / 0.4um
α Axis ± 3 ˚ / 0.002 ˚
β Axis ± 3 ˚ / 0.002 ˚
FOV Range Bracket A.:20˚ ~ 110˚
Bracket B.:60˚ ~ 155˚
Bracket C.:90˚ ~ 179˚
Bracket D.:120˚ ~215˚
Collimator Light Source Color Temperature : 5500K ± 300K
Life time:10,000 hrs
Test Charts Distribution Type A (4:3)
Type B (16:9)
Collimator Lens EFL 25mm ~ 100mm
UV light Source Wave length 365nm
Machine Dimensions 900W*1000D*1500H mm
Machine Weight 300 Kg
Power Supply AC220V/10A
Communication Interface I/O Card
Operation System Windows7
