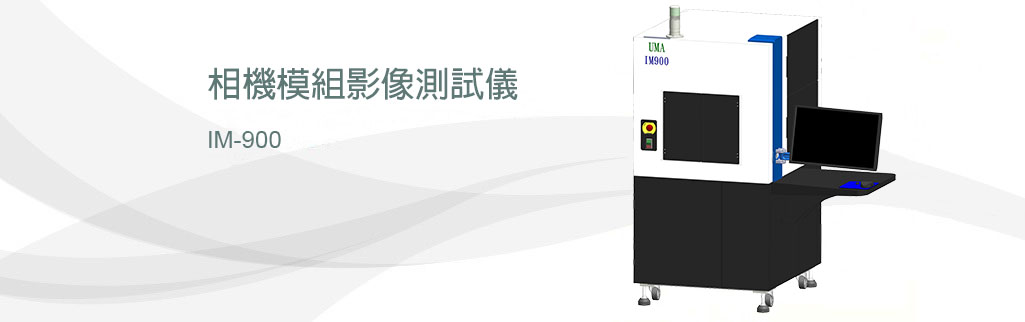

IM-900

1

相機模組影像測試儀
Camera Module Image Tester


產品特點Features
透過三個測試站,本質校正、影像品質與解像力等多種測試功能可對像機模組進行全功能之數位影像品質檢驗。
The digitalized quality full inspection of camera module can be achieved by through three stations test, intrinsic calibration, Image Quality and Resolution, with multiple test items of each station.
●FOV(Field of View)最大值可接近 215°,可滿足各式相機模組的需求如運動相機、網路相機、環景相機與車用相機等。The maximum FOV(Field of View)is close to 215 degree for fulfilling the test requirements of different kinds of camera modules such as surveillance, sport and in car, etc.。
●雙軌運輸設計允許測試過程中進行樣品取放,以達到降低測試週期的功能。Two tracks transportation system design allows operating subjects load/unload while testing for reducing the total cycle time.
●快速切換治具與料盤設計,可滿足少量多樣需求;也可配合客戶產線客製規劃。Fast tray and Jig switch design can meet small-volume and variety of models production requirements. This system also can be customized for following client’s production line plan.


2

第一站
First Test Station
檢測項目
Inspection Items
單位
Unit
本質校正
Intrinsic Calibration
光照均勻度Luminance Uniformity %
暈影Vignetting
壞點
Bad Pixel
暗點Bad Pixel (Full White) pixels
亮點Bad Pixel (Full Dark) pixels
缺陷
Blemish
影像髒汙Particles on image Ratio, pixels, numbers.

Remark
可進行廣視角量測
Wide FOV test is available.
第二站
Second Test Station
檢測項目
Inspection Items
單位
Unit
影像品質
Image Quality
顏色精準度與重現性
Color Accuracy or Reproduction
Lab & DL、DC、DE
白平衡White Balance Lab
雜訊比SNR db
雜訊比(全域)SNR_BW db
灰階Gray Level 0 ~ 255 (R、G、B)
第三站
Third Test Station
檢測項目
Inspection Items
單位
Unit
解像力
Resolution
(ISO 12233)
調制轉換函數
MTF(Modulation Transfer Function)
lp/mm
空間頻率響應
SFR (Spatial Frequency Response)
lp/mm
對準度
Alignment
偏心量
Decenter (x , y)
pixel
旋轉
Rotation
順時與逆時鐘旋轉量
Amount of positive clocking or anti-clocking
degree
MTF量測物距
Object Distance MTF
掃描範圍可由40cm至無窮遠(選配)
Scanning range from 40cm~infinity. (Optional)

Remark
無窮遠/有限物距共軛架構
Infinity /Finite(optional) Conjugate
Max. FOV≦215° , Min FOV≧20˚

3

項目
Items
描述
Description
Optical Finite and infinite conjugate system
0.4 m ~ infinite automatic adjustment system (Optional)
Test Points 5 / 9 / 13 collimators
Collimator Type Fixed / Motorized collimators
Collimator Specification Edge Pattern
Positioning precision<5um
Positioning repeatability<2um
Module Size limitation 5mm3 ~ 60mm3 (Customized)
Stage Height 286mm + table surface(~700mm)
FOV range Max. FOV≦215°
Half Sphere Light Source Color temperature: 5700K+/-500K
Life: 30000 hrs
Collimator Light Source Color temperature: 5500K+/-300K
Life: 10000 hrs
Aspect Ratio Type A (1:1) / Type B (4:3) / Type C (16:9)
Collimator Lens EFL 25mm ~ 100mm
Color Chart 12 color patches including black, white, gray, primary colors and compliments.
Color Light Source Beck light source design
Color temperature: 5700K+/-500K
Life: 30000 hrs
Machine Size 840(W) *700(L) *1700(H) mm
Weight 300Kg
Power Requirement AC220V/10A
Image Capture Interface Please refer to the table in next page.
OS Windows 7
