Multi-EFA

1

Multi-EFA

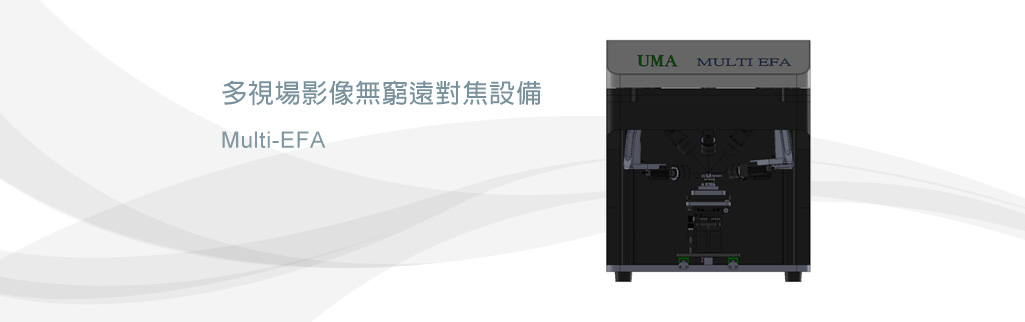

多視場影像無窮遠對焦設備


Multi-EFA提供相機模組的對焦品質測試，系統中含有數個可調整視場（Field of View, FOV）的測試圖案（Chart），藉由準直鏡（Collimator Lens）的搭配與調校，可進行有限或無限距共軛系統之相機模組測試。若搭配選購九驊SFR測試軟體即可判斷MTF分佈。

2

詳見規格

3

Item Description Remark
Collimator Lens 5 sets / 9 sets / 13 sets optional
Collimator Lens EFL 35mm / 50mm / 75mm optional
Chart Star Pattern exchangeable
XYZ Stage (manual) Camera Module Base
Y axis-Slide for Camera Module load & unload
Maximum FOV (Diagonal) 180°
Standard Light Source LED (White Light 5500K)
Brightness > 10 lux
Machine Dimensions 68 cm * 60 cm *55 cm
Machine Weight 35KG
Power Supply AC110V
