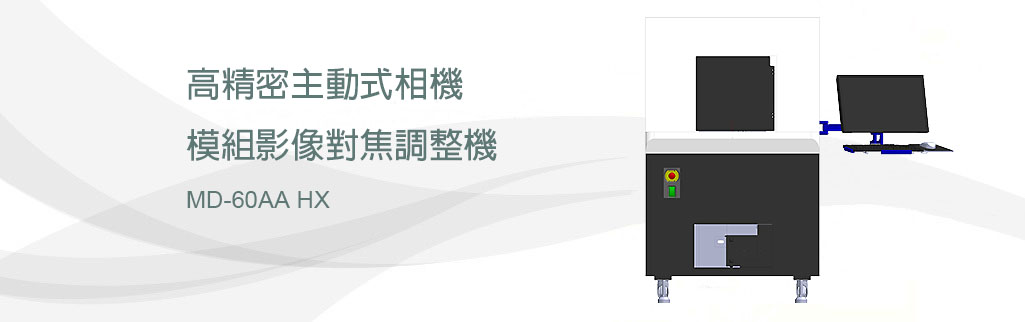

MD-60AA HX

1

高精密主動式相機模組影像對焦調整機
High Precision Active Alignment of Image Module Assembler



產品特點 Features
●全功能數位化的影像品質調整,透過6的調校,呈現出鏡頭與影像感測器的最佳搭配效果。
Full-function and digitalized Lens image quality alignment. Optimize image quality by 6 degree freedom adjustment.
●3組不同的標靶圖提供不同物距的AA與檢測需求。
Three charts sets are designed for different object distances AA or test requirements.
●高速像平面傾斜及對心調校,進行αβ軸傾斜補正及XY軸對心,快速而確實。
High speed image tilt alignment. Able to proceed promptly and accurately image plane correction by αβ axis adjustment and through focus curve calculation.

2

Optical System Customized finite distance optical system
Active Alignment 6-Axis adjustment for acquiring optimized image quality
Through Focus and SFR Curves Measuring Before and after Active Alignment
MTF Measurement at On/Off-axis MTF test will be both proceeded before and after pre-curing.

3

Item Contents
Optical System Finite reticle system
(9mm objective distance for AA,and 5mm and 100mm objective distance for test.)
Lens & Module Dimensions
(Customized)
Lens ψ:3 ~ 25 mm
    H:2 ~ 20 mm
Module H:5 ~ 30 mm
Platform Space 100mm(W)*130mm(L)
XYZαβ Axis SPEC
Stroke/resolution
MD-60AA HX
X Axis 30mm / 1um
Y Axis 30mm / 1um
Z Axis 20mm / 0.5um
α Axis ± 5 ˚ / 0.0045 ˚
β Axis ± 5 ˚ / 0.0035˚
θAxis ± 5 ˚ / 0.0042 ˚
FOV Range 100˚ (Customized)
Collimator Light Source Color Temperature : 5500K ± 300K
Life time:10,000 hrs
Test Charts Distribution 4:3
UV light Source Wave length 365nm
Machine Dimensions 900W*1000D*1500H mm
Machine Weight 300 Kg
Power Supply AC220V/10A
Communication Interface I/O Card
Operation System Windows7
