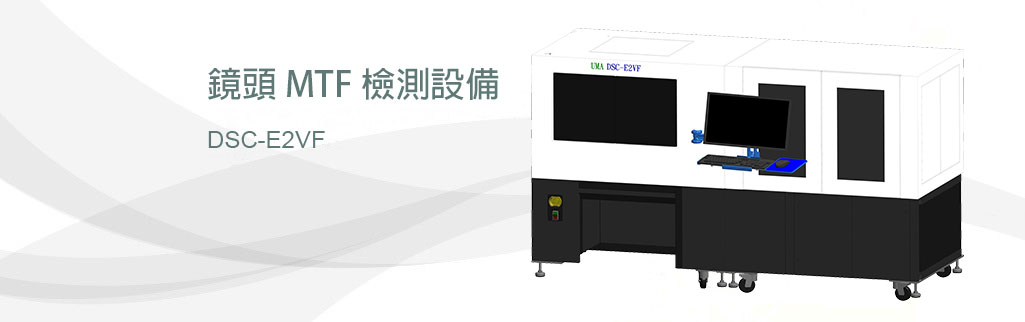

DSC-E2VF

1

DSC-E2VF
MTF Inspection


DESCRIPTION
DSC-E2VF是以鏡頭MTF檢測為應用之產品,以涵概高倍(30x)變焦鏡頭為優先規劃考量、能擴大支援
手機、NB、監控、AR、VR、3D Sensing等鏡頭的檢測。 為配合變焦鏡頭的馬達驅動因素所以採單顆橫臥檢測方式作業。

產品特點Features
• 支援對角FOV 1.8˚~ 150˚量測,實現望遠及廣角鏡頭檢測。

• 除定焦鏡頭外,仍可搭配馬達驅動器實現變焦鏡頭W/M/T等三段以上變焦測試,可支援市面上30x Zoom產品。

• MTF與Distortion修正補償二合一設計 ,節省校正程序及Reticle購買費用。

• 含Wide、Middle、Tele等共10~22 image regions組合供客戶選購及方便擴充升級。

• 可固定變焦鏡頭調焦位置以Reticle作MTF掃描或固定Reticle後焦位置以鏡頭本身調焦掃描MTF或採上述兩者來回掃描、上述Wide ~Tele測試過程軟體會自動對心。

2

MTF
DOF Depth of Focus
FBFL Flange Back Focal Length
EFL
Through Focus
Focus Tilt Curvature Height
Image Plane Tilt Angle & Azimuth
Image plane Correction
S.F.R. Spatial Frequency Response
Limit Resolution(lp/mm)

3

SPECIFICATIONS
Normally Average Test Time
(w/o load & unload)
單一Zoom Position以Reticle掃描約7secs
Note.細節仍需視待測鏡頭馬達驅動速度而定
MTF Repeatability (excluding load & unload) 特定Zoom Position以Reticle掃描
Delta MTF : (<= 180lp/mm)
On axis <= 1.5 ; off axis <= 2.5
Note.若以鏡頭作MTF調焦掃描時則重現性因鏡頭本身AF作動穩定與否難以作為機台評價
Maximum Measuring Frequency 300lp/mm
Limited FBL > -3.0mm
Limited Image Circle ≦16mm  ( >16mm customized)
Collimator Lens (A Zone)
Wide/Middle-1 <=3x Zoom Ratio
25mm for EFL 0.8mm~2.5mm
35mm for EFL 1.3mm~4.0mm
50mm for EFL 2.5mm ~ 7.5mm
100mm for EFL 4mm~12mm
Relay Lens (B Zone)
Middle-2/Tele <=3x Zoom Ratio
Type. A : 4.5˚~30˚ 、EFL > 22.5
Type. B : 3.0
˚~16˚ 、EFL > 33.7
Type. C : 1.8
˚~16˚ 、EFL > 62.5
FOV Range (A Zone & B Zone) (A Zone) Dome R480
Bracket A. : 18˚ ~ 75˚ (Typical)
Bracket B. : 60˚ ~ 120˚
Bracket C. : 95˚ ~ 150˚
(B Zone)
1.8
˚~ 35˚ (base on relay lens)
Lens Size Limitation ψ50, L150mm
XY(Centering)Z(Focus Scan) Axis Accuracy 1um
Wavelength Photopic or NIR
Motor Controller Support stepping motor*2
Light Source 15V /150W halogen lamp or LED Light Source
Machine Dimensions(cm) 150cm *80cm *300cm
Machine Weight(Kg) 350 Kg
Power Supply AC220V/20A
IPC Operation system Microsoft Windows 7
